Pogo Pins & Pogo Pin Connectors
High-Speed · High-Current · High-Density
UIGreen supplies precision pogo pins and pogo pin connector solutions for semiconductor testing, PCB connection and custom electronic assemblies. Designed for stable electrical contact, current transmission and signal transfer — configurable around your specific product structures, testing requirements and integration needs.
WHY UIGREEN
High-Speed, High-Current Spring Probe Solutions
Ideal for high-frequency signal testing
Contact resistance <50 mΩ for power applications
Supports ultra-compact semiconductor layouts
Up to 500K+ cycles; 100% full inspection ensures high production yield
PRODUCT RANGE

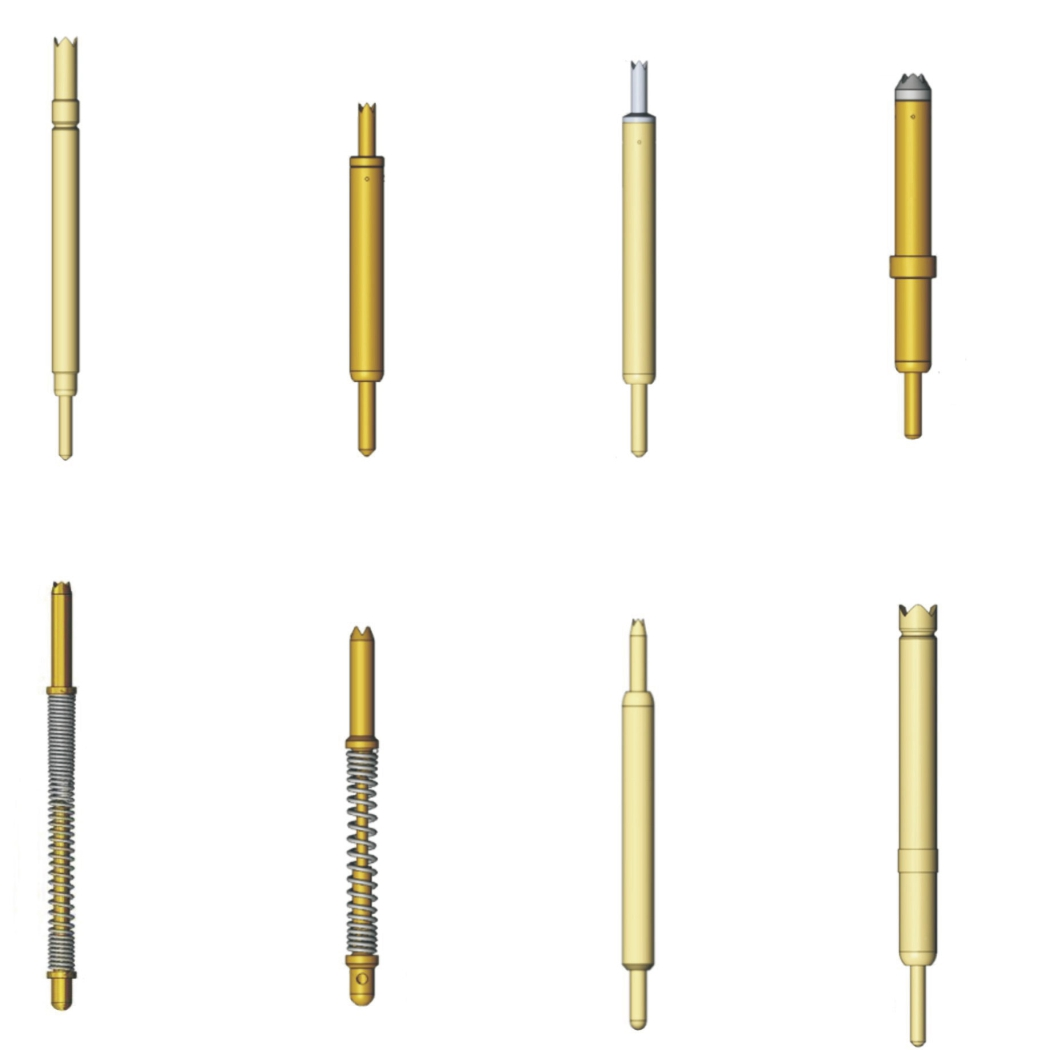

Product Series
Models
TECHNICAL DATA
Technical Specifications
| Parameter | Value |
|---|---|
| Plunger Diameter | Φ0.04-0.7 mm |
| Contact Resistance | <50-300 mΩ |
| Operating Temperature | -40℃~+150℃ |
| Compression Stroke | 0.30-3.50 mm |
| Service Life | >200K~500K cycles |
| Spring Force | 4.4-37 g |
| Plunger Material | Pd/Ag/Cu Alloy / BeCu / Hard Carbon Steel / Gold Plating |
| Barrel Material | Nickel Tube / PBT / Gold Plating |
| Spring Material | Piano Steel Wire / Gold Plating |
WHY CHOOSE UIGREEN
Precision Manufacturing. 100% Full Inspection.
High Density & High Speed
Pitch down to 0.13mm; RF up to 55GHz. For compact, high-frequency test.
High Current & Reliability
Current up to 5.0A.
Precision Manufacturing
Tolerance 0.02mm. Imported BeCu & stainless steel; Swiss lathe precision.
100% Full Inspection
Fully automated; High production yield.
